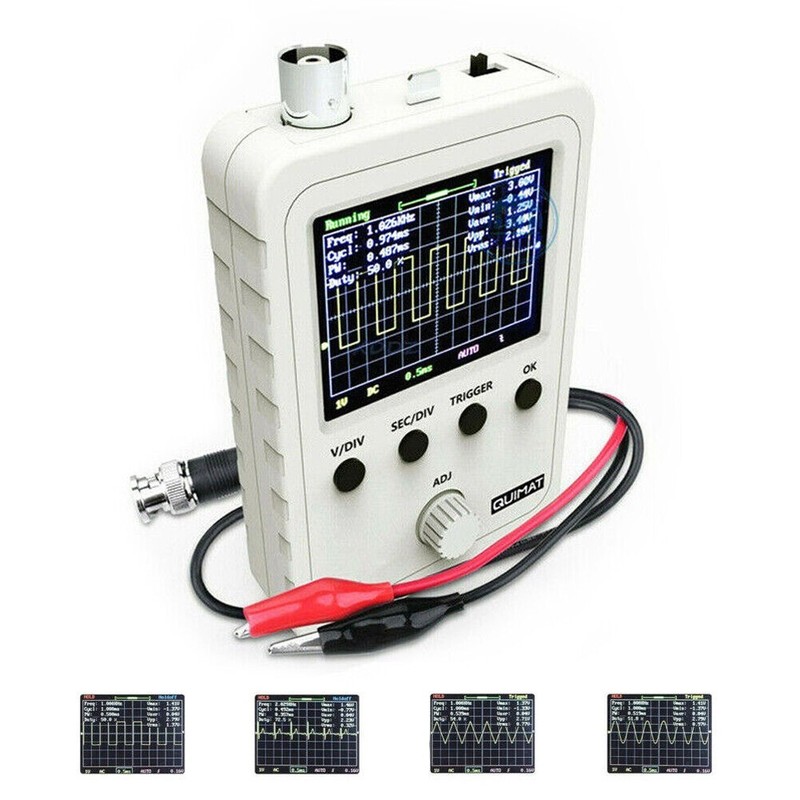

Oscilloscope Digital 1Msps 2.4-inch Color TFT LCD 5mV/Div~20V/Div 120mA

About this deal

This is a compact, handheld digital oscilloscope suited to electronics hobbyists, students, and technicians who need a portable and affordable tool for signal testing and circuit debugging. It features a single analogue channel with a bandwidth of 0 to 200kHz, a 12-bit vertical resolution, and an input impedance of 1M ohm. The display is a 2.4-inch colour TFT LCD at 320 x 240 resolution, and coupling options include DC, AC, and GND, with trigger modes covering Auto, Normal, and Single on rising or falling edges. The vertical sensitivity range of 5mV/div to 20V/div is broader than many comparable units in this class, and a rotary encoder is included to make parameter adjustment quicker and easier. It is well suited to a range of practical tasks including home appliance repair, automotive maintenance, electronics research, and power supply diagnostics. A 9V DC power supply is required to run the unit.
