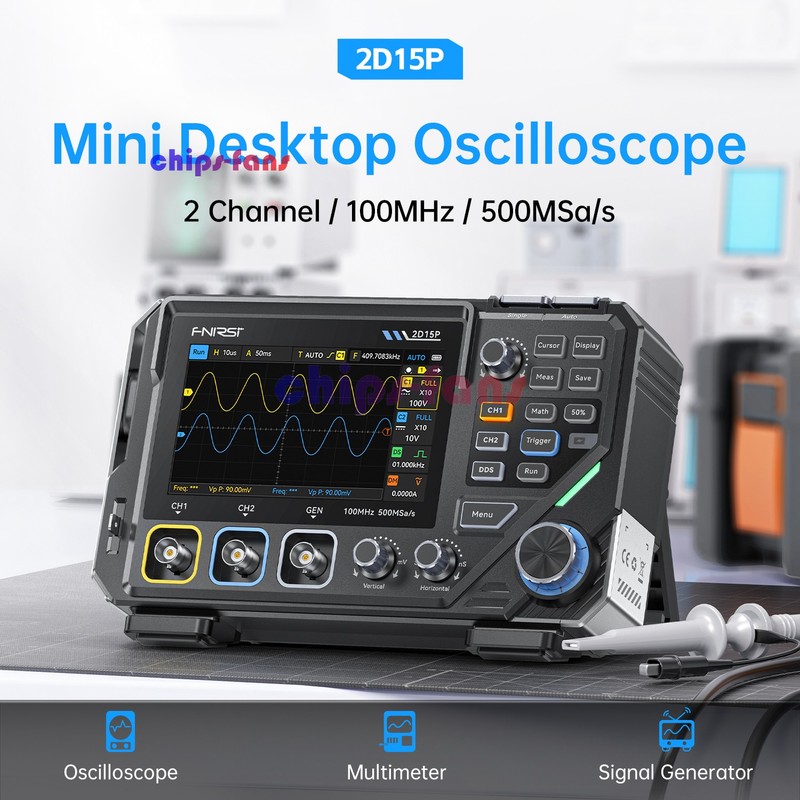

FNIRSI 2D15P Digital Multimeter Oscilloscope Signal Generator 100Mhz 500MSa/s

About this deal

The FNIRSI 2D15P is a compact 3-in-1 test tool combining a 2-channel digital oscilloscope, True RMS multimeter, and waveform generator in one device. It offers 500 MSa/s sampling, 100 MHz single-channel bandwidth (50 MHz dual-channel), and 10K to 1M memory depth. The unit combines physical buttons with a 4.3-inch capacitive touchscreen , and features a 128-level grayscale display, 1,200 fps waveform capture, 18 automatic measurements, and a 19,999-count True RMS multimeter supporting voltage, current, resistance, capacitance, diode, and continuity tests. It is well suited to educational institutions, electronics repair, circuit design, and hobbyist projects. The built-in 10 MHz signal generator outputs 9 waveform types including sine, square, triangle, DC, noise, and step signals, with adjustable amplitude and duty cycle for circuit simulation and testing. The device has a built-in 5,000 mAh rechargeable lithium battery and charges via USB Type-C. The well-finished and sturdy case features two fold-out legs on the back so you can tilt it slightly for comfortable bench use.
