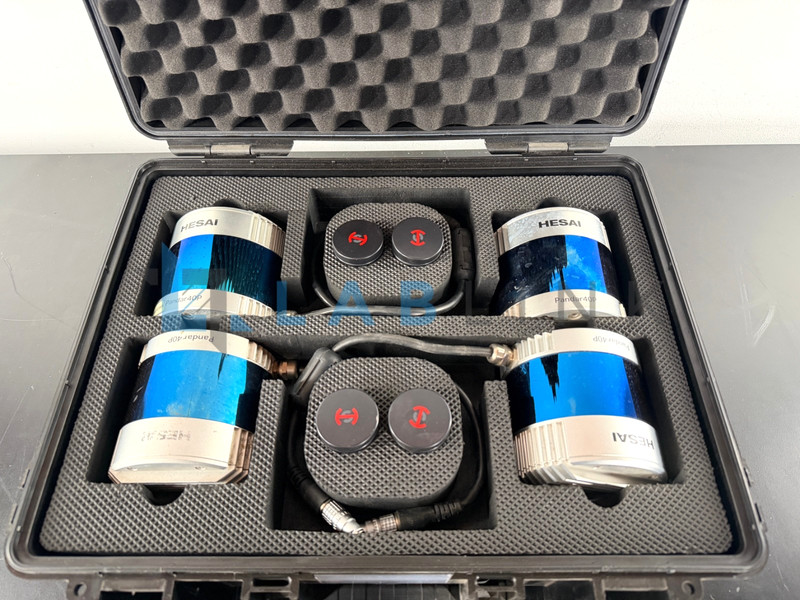

(Case of 4) Hesai Pandar40P 40-Channel 360° Spinning Long-Range Lidar + WARRANTY

About this deal

The Hesai Pandar40P is a 40-channel mechanical lidar that produces 360-degree 3D imaging by rotating 40 laser diodes inside its housing. It delivers a detection range of up to 200 metres at 10% reflectivity , making it well suited to demanding outdoor environments. Each beam emitted carries a unique code, and only beams with a matching code are accepted into the point cloud, with non-matching returns rejected -- a full interference-rejection system that keeps the point cloud clean when multiple units operate nearby. It accepts a wide voltage input of DC 9-48V and outputs point cloud and GPS data packets over 100 Mbps Ethernet UDP/IP. The Pandar40P serves a wide range of industries, including autonomous driving, HD mapping, and logistics. Its unique channel distribution makes it particularly suitable for autonomous driving applications. The vertical field of view spans 40 degrees (-25 to +15 degrees), horizontal resolution is 0.2 degrees at 10 Hz or 0.4 degrees at 20 Hz, and the unit weighs 1.52 kg. This listing comprises four units in used condition, offered with warranty.
