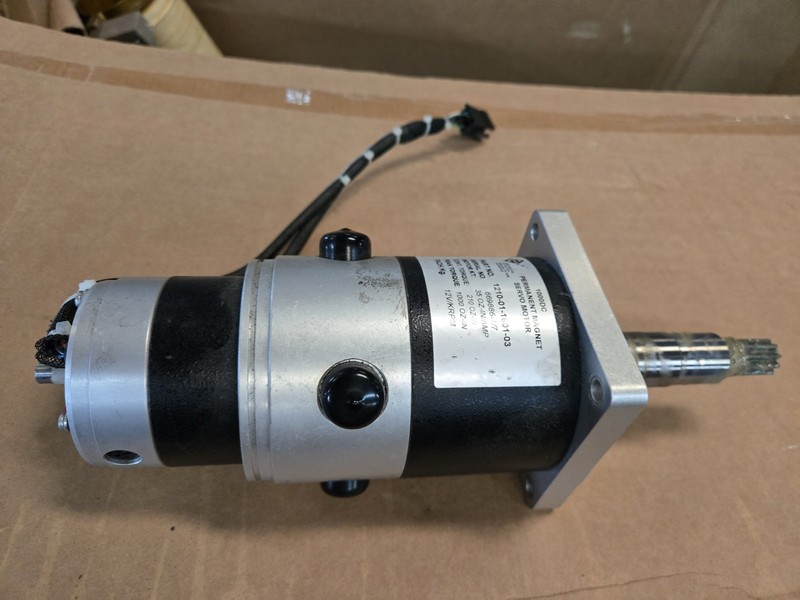

Aerotech 1000DC Permanent Magnet Servo Motor 1210-01-1601-03 210 oz-in

About this deal

This is a used Aerotech 1000DC series brush-type rotary DC servomotor, part number 1210-01-1601-03, with a continuous stall torque of 210 oz-in (1.48 Nm) and a peak torque of 1000 oz-in (7.1 Nm). The 1000 series motors are Aerotech's high-performance brush-type rotary DC servomotors, designed for a variety of general and high-performance motion control applications. They come in standard NEMA frame sizes, with standardised flange and shaft dimensions that make mounting to existing NEMA-based machines straightforward. The series features a dynamically balanced skewed rotor and tachometer assembly to reduce cogging and deliver smoother velocity control, with skewed laminations that help minimise torque ripple -- making these motors well suited to demanding applications such as machine tool, medical, semiconductor, and scanning. Each motor is constructed from high-grade materials including a stainless-steel shaft, double-shielded bearings, and a precision machined housing. This item is listed as used and is suited to engineers or system integrators seeking a high-torque servo for motion control projects or machine retrofits.
